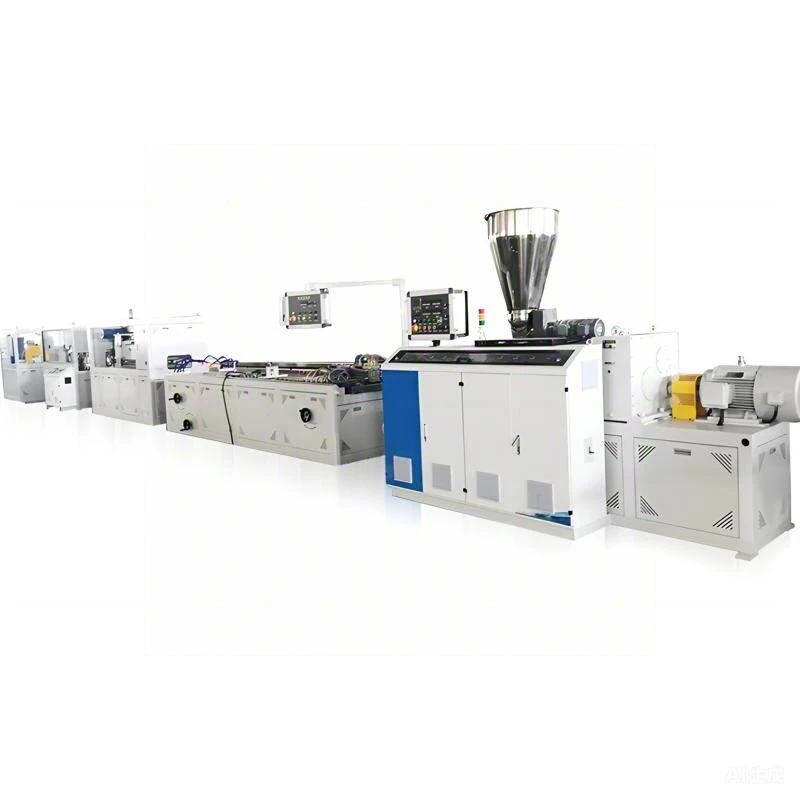

PVC Wall Panel Extrusion Machine Line

1. Kakaretso ea mohala oa tlhahiso le sehlahisoa sa ho qetela

Mohala ona oa tlhahiso ke lisebelisoa tse ikemetseng tse tsoelang pele ho hlahisa libopeho tse fapaneng, mebala le mekhoa ea marako a PVC ho tloha motsoako oa PVC ka theknoloji ea ho bopa extrusion.

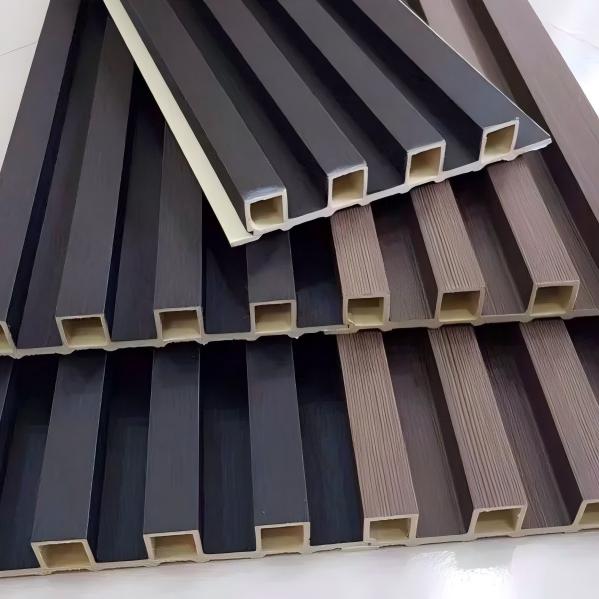

Sehlahisoa sa ho qetela:

·PVC buckle board (Great Wall board, integrated wall board): letlapa le lelelele le nang le leleme le groove (li-grooves tsa banna le basali), tse ka aroloang ka ho toba le ho kenngoa, haholo-holo tse sebelisetsoang marako le siling.

· PVC skirting board, top corner line, waistline: mefuta e fapaneng ea mekhabiso.

·Lisebelisoa tse ling tse khethehileng-: liphanele{1}} tse tharo tse nang le mekhabiso e khethehileng.

Lihlahisoa tsena li na le litšobotsi tsa ho thibela metsi, ho thibela mongobo, ho thibela lelakabe, ho koala molumo, ho kenya ka potlako, le ho hloekisa habonolo, ho etsa hore e be lisebelisoa tse loketseng tsa mekhabiso bakeng sa libaka tse kang kichine, likamore tsa ho hlapela, mathule le liofisi.

2. Likarolo tsa mantlha le mosebetsi oa ho sebetsa

Ts'ebetso ea mantlha e ts'oana le mohala oa lejoe oa ho etsisa, empa phapang ea mantlha e ka har'a hlobo le ts'ebetso e latelang.

Raw material preparation ->high-speed hot mixing ->cold mixing ->extruder plasticization ->mold forming ->vacuum shaping ->cooling water tank ->traction ->printing/laminating (optional) ->fixed length cutting ->jarolla ka ho iketsa

3. Tlhaloso e qaqileng ea lisebelisoa tsa bohlokoa (litšoaneleho tsa lebota la lebota)

(1) Mokhoa oa ho kopanya

*Motsoako o chesang o lebelo o phahameng + o batang: o ts'oana hantle le pele, ke senotlolo sa ho netefatsa ho ts'oana ha thepa le polasetiki ea pele. Foromo e phetha karolo ea bohlokoa ho thata, ho tiea, le ho hanyetsa boemo ba leholimo ba liphanele tsa lebota.

(2) Sistimi ea Extrusion

·Conical twin-screw extruder: e ntse e le khetho ea mantlha ea mantlha. Ka lebaka la ts'ebetso ea eona e ntle ea ho kopanya le bokhoni ba ho fepa, e loketse haholo bakeng sa ts'ebetso e tobileng ea phofo ea PVC. Moetso o khethiloe ho ipapisitsoe le bophahamo ba tlhahiso (joalo ka SJSZ51/105, moo 51 e emelang bophara bo nyane ba pheletso mme 105 e emetse sebaka sa setsi sa screw).

(3) Mold and shape system - liphapano tsa mantlha tsa theknoloji

Ena ke phapang e kholo lipakeng tsa mola oa lebota le mola oa lakane.

· Extrusion die:

·Ona ke motheo o khethollang-karolo ea sebopeho sa lebota. Mecha ea phallo ea ka hare ea hlobo e entsoe ka nepo ho etsa bonnete ba hore thepa e entsoeng ka ho qhibilihisoa ka mokhoa o ts'oanang e etsa sebopeho sa lebota la lebota (joalo ka liphanele tsa Great Wall, liphaephe tsa lisekoere, joalo-joalo) le sebopeho sa leleme le groove.

·Boemo ba moralo le ts'ebetso e nepahetseng ea hlobo li bonts'a ka kotloloho ho nepahala ha sebopeho le boleng ba ponahalo ea sehlahisoa.

·Tanka ea Vacuum Calibrator:

·Sena ke sesebelisoa sa bohlokoa bakeng sa ho hlahisa liphanele/profaele ea lebota. Thempereichara-e nolofalitsoeng e phahameng e tsoang molomong oa hlobo e kena hang-hang sebakeng se etsang vacuum.

·Ho na le liforomo tsa sebopeho (hangata li arotsoe) ka har'a tafole ea sebopeho e tsamaellanang le sebopeho sa sehlahisoa. Ka vacuum adsorption le phepelo ea metsi a pholileng, billet e nolofalitsoeng ea PVC e khabisitsoe ka nepo ka har'a sekoaelo sa hlobo mme e pholile ka potlako le ho thatafala ho fumana boholo bo nepahetseng le bokaholimo bo boreleli.

·Bolelele le palo ea likarolo tsa tafole ea sebopeho li itšetlehile ka ho rarahana le lebelo la tlhahiso ea sehlahisoa.

(4) Sistimi ea ho futhumatsa

Tanka ea ho Pholisa: Ka mor'a ho etsa vacuum ea pele, liphanele tsa lebota li kena ka tanka e telele ea ho pholisa 'me li pholile hantle ho isa mocheso oa kamore ka ho qoelisoa kapa ho fafatsa, ho netefatsa hore sehlahisoa se bōpehile ntle le ho senyeha.

(5) Tsamaiso ea ho hula

· Ho hula Seboko:

·Sena ke lisebelisoa tse tloaelehileng tsa ho hula bakeng sa tlhahiso ea profil. Lipina tse peli kapa ho feta li tiisa lebota, li fana ka matla, a tsitsitseng, esita le ho ts'oara ho thibela profil hore e se thelle kapa ea senyeha.

•Lebelo la ho hula le lebelo la extrusion li tlameha ho amahanngoa, ho seng joalo li ka baka pokello kapa ho robeha.

(6) Lisebelisoa tse latelang tsa ho sebetsa (ka boikhethelo)

· Mochini oa khatiso: Ho hatisa lijo-thollo tsa lehong, lijo-thollo tsa majoe le lipaterone tse ling holim'a liphanele tsa lebota ho matlafatsa boipiletso ba mokhabiso.

·Mochini oa ho lahla lifilimi: Sebelisa lera la filimi e khabisitsoeng ea PVC / PET holim'a metsi ho fana ka mebala e mengata le mekhoa e metle, le ho eketsa ho hanyetsa ho apara.

(7) Mokhoa oa ho khaola le oa ho bokella

· Orbital Cutter kapa Flying Saw:

· Bakeng sa liphanele tsa marako a sekoti, mechini ea ho seha lipolanete ke khetho e ntle. Sekhahla sa eona se chitja ha se pota-potile feela, empa se boetse se pota-potile setšoantšo, se lumella ho itšeha ka mokhoa o hloekileng le o sebetsang ntle le ho penya setšoantšo, ho qoba ho batalatsa.

· Automatic stacker crane: e amohela liphanele tse sehiloeng tsa bolelele bo tsitsitseng ebe e li bokella ka makhethe.

4. Lintlha tsa khetho ea line ea tlhahiso (bakeng sa liphanele tsa marako)

1. Mofuta oa sehlahisoa: Hlakisa mofuta o ka sehloohong oa sehlahisoa seo u batlang ho se hlahisa (na ke buckle kapa skirting board?), E leng se khethollang ho hlophisoa ha hlobo le tafole ea ho bōpa.

2. Bohlokoa ba hlobo: Hlobo ke moea oa tlhahiso ea marako. Ho bohlokoa ho tsetela ka har'a-mofuta o entsoeng hantle le{3}} oa boleng bo holimo, kaha ke oona o laolang boleng, chai, le katleho ea tlhahiso ea sehlahisoa.

3. Tlhahiso le Boiketsetso: Ho ipapisitsoe le tekanyetso ea matsete le litebello tsa 'maraka, khetha mofuta o tšoanang oa extruder bakeng sa tlhahiso (joalo ka 51/105, 55/110, 65/132, joalo-joalo), 'me u tsebe hore na ho hlokahala hore ho be le li-automation (hore na ho hlokahala stacking, joalo-joalo).

4. Lisebelisoa tse tala le foromo: Palo ea ho tlatsa calcium carbonate (phofo ea lejoe) ka foromo ea lerako la PVC e ka ba e phahameng haholo (ho fokotsa litšenyehelo), e hlokang ho hanyetsa ho apara le torque ea extruder.

5. Boiphihlelo ba mofani oa thepa: Ke habohlokoa ho khetha bafani ba nang le phihlelo e pharaletseng tšimong ea PVC profile / lisebelisoa tsa marako a marako, ba ka fanang ka mokhoa o eketsehileng oa setsebi sa sebopeho sa hlobo, tlhahiso ea ts'ebetso, le litšebeletso tsa ho laela.
